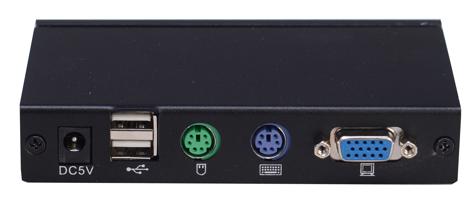

KL-100M + KL-153M Set(KVM Extender) Transmission distance: 300m


KVM Extender transmits kvm up to 300m away from a computer using CAT5/5e/6cable. Each KVM extender consists of a local unit and remote unit, both support monitor, keyboard and mouse, with gain adjustment function for video.


The scope of products:
LCD and plasma flat-panel display advertising project
Large screen LCD screen display projects
Large projection equipment demonstration system
Industrial automation control system
Large and medium audio and video conferencing systems
Medical care display system
Bank, securities, financial system
Security VGA area monitoring system
Multimedia network teaching system
Long distance KVM extender, switcher
Remote network server monitoring
Large and medium - sized central control system
Military exercise command system


● Long video transmission distance, high transmission quality;
● Convenient for wiring and cable utilization is high;
● High anti-interference ability;
● High reliability, easy to use;

Transmitter:

Model No.

KL-100M



Switch between remote and local keyboard and mouse functions

F12 hot-key switch

Console

Keyboard

1 x PS/2, 1 x USB Female

Mouse

1 x PS/2, 1 x USB Female

Display

1 x HDB-15 Female(Blue)

Sender

1 x RJ-45

Status Indicator

3

Video Resolution

1920 x 1080

Standard power supply

DC5V 2000mA

Operating temperature

0˚C~50˚C

Storage temperature

-20˚C~60˚C

Case

Metal

Weight

580g

Size( length x width x height )

125mm*74mm*23mm

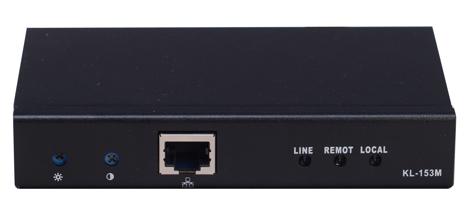

Receiver:

Model No.

KL-153M

Connector

Keyboard&Mouse

PS/2,USB

Display

1 x HDB-15 Female(Blue)

CAT5

RJ45

Video adjustment

Adjustable knob, hot key adjustment

Video

Signal Type

VGA signal

Minimum input level

0.5Vp-p

Maximum input level

1.0Vp-p

I/O impedance

75Ω

Best resolution

1920*1080

Line frequency

30-100KHz

Field frequency

60Hz

Spec

Distance

MAX 300M

power supply

DC5V 2000mA

Storage temperature

-20˚C~60˚C

Operation temperature

0˚C~50˚C

Size

125mm*74mm*23mm

Weight

600g

Color

Black

Case

Metal

Transmission Distance:

Cable

Distance (m)

Resolution60Hz

CAT5/5e-CAT6

0-300

1920 x 1080
