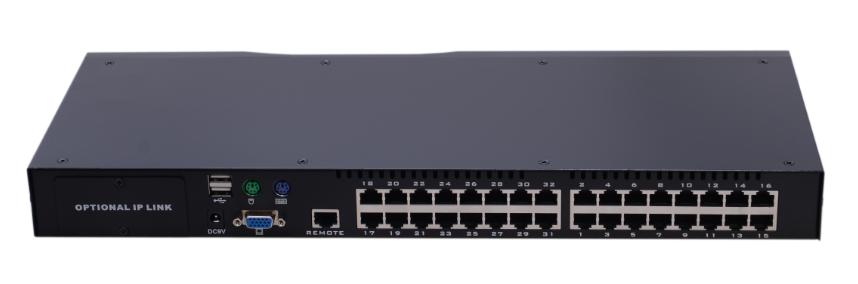

KS-3132 (CAT5 Rack-Mountable KVM Switch, 32ports)


● High density connection ports-R-J-45 connection ports and CAT5e/6Up to 32 ports are provided online;
● Separate channel, one remote connection can be provided for KVM over IP access;
● One CAT5 remote connection can be provided for KVM over IP access;
● Built in l set of 1000 Mbps network adapter cards provide local area network with IP operation capability;
● Local console supports USB or PS2 keyboard and mouse;
● Supports cross-platform server environments: Serial devices based on Windows, Mac, Sun, Linux, etc;
● Monitors up to 32 servers at a single level, or up to 1024 servers through cascading;
● computer controlled keyboard and mouse connection port adopts Keep Online technology to simulate the mouse and keyboard, the equipment is safe and stable, and the switching is rapid. Traditional KVM can be cascaded and transformed into IP remote control mode without changing the original equipment and wiring in the machine room

Type

32 Port

Model

KS-3132

Computer Connection

Direct Connects

32

Maximum Connects

512

CPU Port Selection

OSD Menu, Front panel buttons, Hot Key, IP Remote Control (Optional)







Connectors

Console Connector

Monitor

1xVGA DB15 Female(blue)

Keyboard

1xPS/2 Female(Purple)

1 x USB Type A Female

Mouse

1xPS/2 Female(Green)

1 x USB Type A Female

PC Connector

Monitor, Keyboard/Mouse Switch Module

32 x VGA DB15 Female Blue, 32 x USB

32 x DVI, 32 x USB

32 x HDMI, 32X USB



Switch Module Port

32 x RJ45

Power

DC12V4A

Network Port

1 x RJ45(Optional)

Key Switch

Connection Port Selection

KVM Operation Panel Digital keys

KVM Reset

1 x semi-embedded keys

IP Module Reset

1 x semi-embedded key

IP Module Default

1 x semi-embedded key

LED’s

Selected

32 x Green

Online

32 x Red

IP Network

1 x Green, 1 x Orange

Analog Mode

Keyboard/Mouse

USB, PS/2

Resolution (Max)

1920 x 1200 @ 60HZ Local & Remote

Scan time interval

3, 5, 10, 15, 20, 30, 40, 60s (3s by default)

Operating Environment

Operating temperature

-10-50˚C

Storage temperature

-20-60˚C

Humidity

0-80%RH, No Condensation


Physical Properties

Housing

Metal

Size

432 x 155 x 44 mm

Weight

4.3KG
